SGS

Controllable high-pressure fans

Features

Ventilating with counter-pressure
Low energy consumption in the control range
Low-noise
Stable pressure in the control range
Suitable for central exhaust systems, air scrubbers and manure drying systems
A suitable solution for every situation
IE3 motor
Appropriate protection grille available

Check out our matrix for the best solution!

Matrix

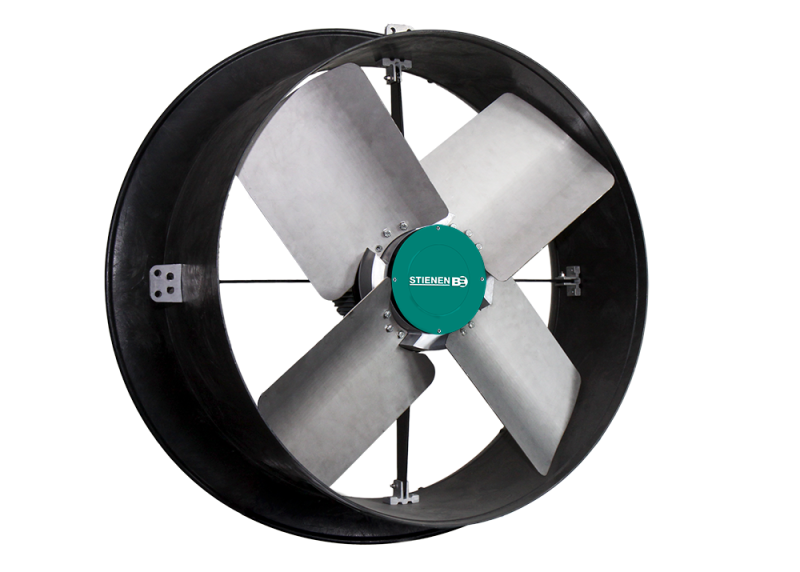

SGS high-pressure fans

Stienen SGS fans have been specially developed for easily controllable low-noise and energy-efficient ventilation, even with high counter-pressure. This makes the SGS fans ideally suited for central exhaust systems, possibly in combination with air scrubbers and manure drying systems. The fans (wall of fans) must always be positioned in front of the air scrubber. Stienen BE
supplies nine different versions of SGS fans enabling to provide the best suitable solution for each situation!

Product options

36.44.xx

SGS in pipe with air entry cone
SGS-xxH-xxx
Fan 400V - xxxkW - 4 SS blades
Available in diameter : 71cm - 82cm - 92cm

36.45.xx

SGS fan in VAR fan ring
SGS-xxH-xxx-VAR
Fan 400V - xxxkW - 4 SS blades in VAR
Available in diameter : 71cm - 82cm - 92cm

36.46.xx

SGS fans to be built-in in extension duct
SGS-xxH-xx-i
Fan 400V - xxxkW - 4 RVS blades - built-in
Available in diameter : 71cm - 82cm - 92cm

Product leaflet

File

Device name

Language

SGS-L-CN20041.pdf SGS Chinees SGS-L-ES25040.pdf SGS Spaans SGS-L-DE25040.pdf SGS Deutsch SGS-L-EN25040.pdf SGS English SGS-L-NL25040.pdf SGS Nederlands

Accessories

Miscellaneous SGSModels


Item no. + description

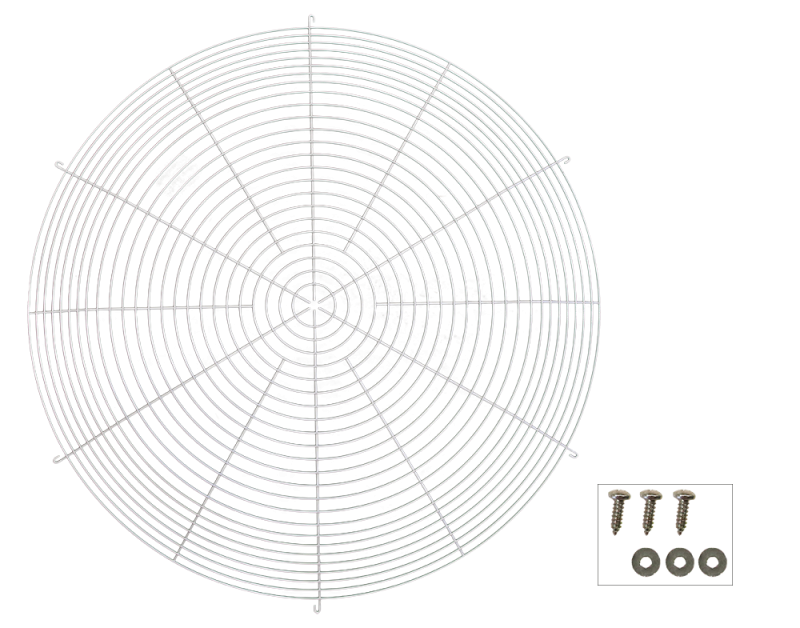

30.6x.00 Protection grid RO-AQC-xx Protection grid AQC-xx Available in : 30cm - 35cm - 40cm - 45cm - 50cm - 56cm - 63cm - 71cm - 82cm - 92cm

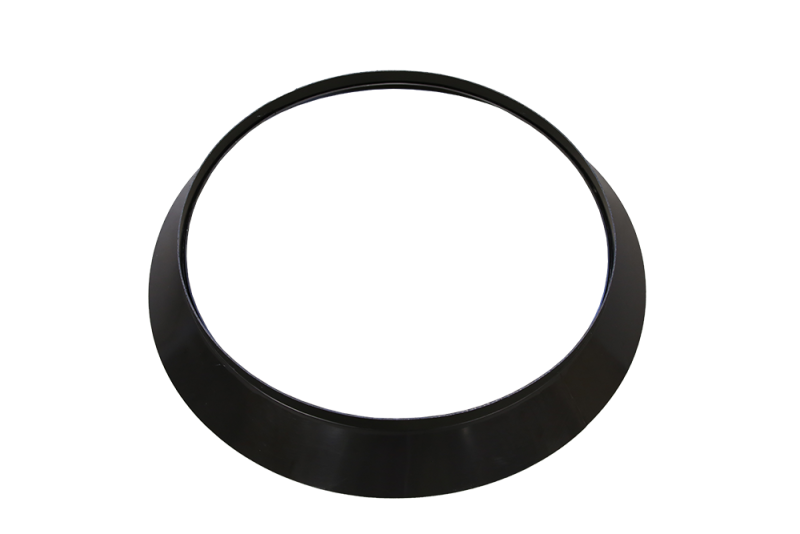

36.62.0x-S Outlet cone USK-xx Outlet cone for SGS-xx fans Available in diameters : 82cm - 92cm


Item no. + description

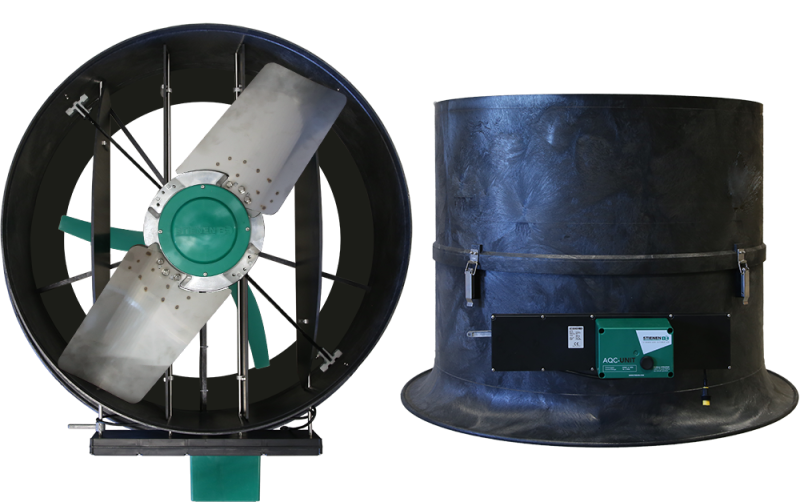

Ventilation cassette with fan
LA-xxH-xxx-G | green measuring impellor
LA-xxH-xxx-ZM | without measuring impellor
Ventilation cassette AQC + SGS + motor
Available in diameter : 71cm - 82cm - 92cm

33.80.xx Ventilation cassette with fan LA-xxH-xxx-G | green measuring impellor LA-xxH-xxx-ZM | without measuring impellor Ventilation cassette AQC + SGS + motor Available in diameter : 71cm - 82cm - 92cm
