PFB-35 / PFB-70

Robust and intelligent feed weighers

PFB-35 / PFB-70 - 1 PFB-35 / PFB-70 - 2 PFB-35 / PFB-70 - 3 PFB-35 / PFB-70 - 4
PFB-35 / PFB-70 - 1 PFB-35 / PFB-70 - 2 PFB-35 / PFB-70 - 3 PFB-35 / PFB-70 - 4

Features

  • Stand-alone or combined with a Stienen feed management computer
  • Accurate weight-based feed registration (max. 9-11 metric tonnes/hour)
  • Controls 1 silo auger
  • 3 Feed dosing drive options (sensor / pulse / feed management computer)
  • Stainless steel weighing hopper
  • Feed curve adjustable by means of 24 breakpoints
  • Error codes can be read out from the display
  • Displays feed and water data
  • The PFB-35 is available with a PFB-SV switch valve
Quickly to: More info Manuals Options Leaflets Accessories Related

PFB-35 / PFB-70 autonomously working feed weighers

Stand-alone | The PFB feed weighers (weighing hopper capacity 35 or 70 litres) register the amount of feed supplied on the basis of highly accurate weight measurements. The display provides you with information about the amounts of feed and water intake. Both feed weighers have a memory chip in which all settings are stored to ensure that, even if the voltage is lost, these settings are saved. Both types of feed weighers independently control one silo auger.

As part of a feed system | Feed costs are an important factor for any farm. Linking the Stienen BE feed weighers to a Stienen feed management computer enables you to control this cost item as efficiently and carefully as possible. Mixing several ingredients, dosing for different animal groups, managing the stocks in the silos and animal management are just some of the possible functions. And a clear overview of the current situation of your feed system is always within easy reach.

Manuals

User manual (1)
File
Device name
Language
PFB-G-ES01660.pdf PFB Spaans

Product options

23.05.15
23.05.16
Feed weigher 70 litres with control unit
Accessories
Under frame Storage hopperSensorMiscellaneous PFB
Item no. + description
PFB-35-OS Under frame PFB-35 complete
24.10.50 PFB-35-OS Under frame PFB-35 complete
PFB-35-OSV Under frame PFB-35 complete, heigthened
24.10.49 PFB-35-OSV Under frame PFB-35 complete, heigthened
PFB-70-OS Under frame PFB-70 complete
24.10.51 PFB-70-OS Under frame PFB-70 complete
Item no. + description
PFB-35-OVK Storage hopper PFB-35, 250x150mm complete
24.10.52 PFB-35-OVK Storage hopper PFB-35, 250x150mm complete
PFB-35-OVG Storage hopper PFB-35, 400x320mm complete
24.10.53 PFB-35-OVG Storage hopper PFB-35, 400x320mm complete
PFB-70-OVK Storage hopper PFB-70, 250x150mm complete
24.10.54 PFB-70-OVK Storage hopper PFB-70, 250x150mm complete
PFB-70-OVG Storage hopper PFB-70, 400x320mm complete
24.10.55 PFB-70-OVG Storage hopper PFB-70, 400x320mm complete
Item no. + description

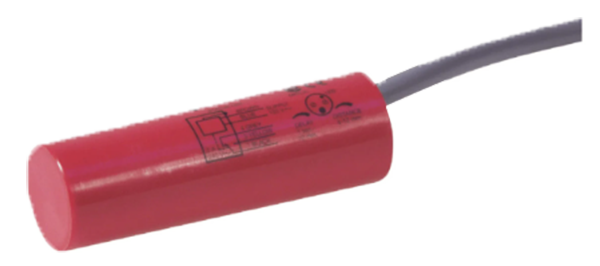

Sensor 24 Vdc for feed weigher
24.03.00 Sensor 24 Vdc for feed weigher

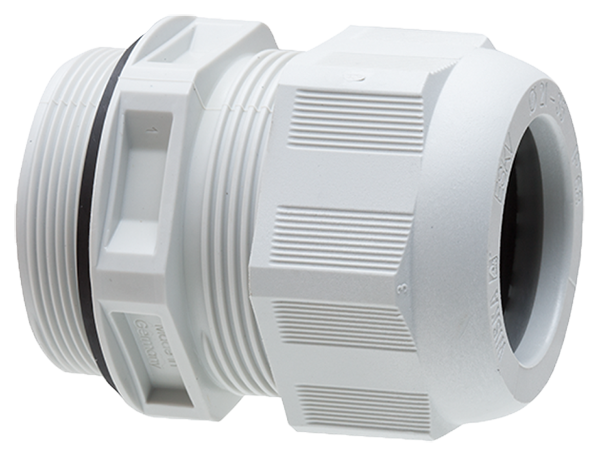

UN-M50 Union nut M50 white
24.03.05 UN-M50 Union nut M50 white
Item no. + description

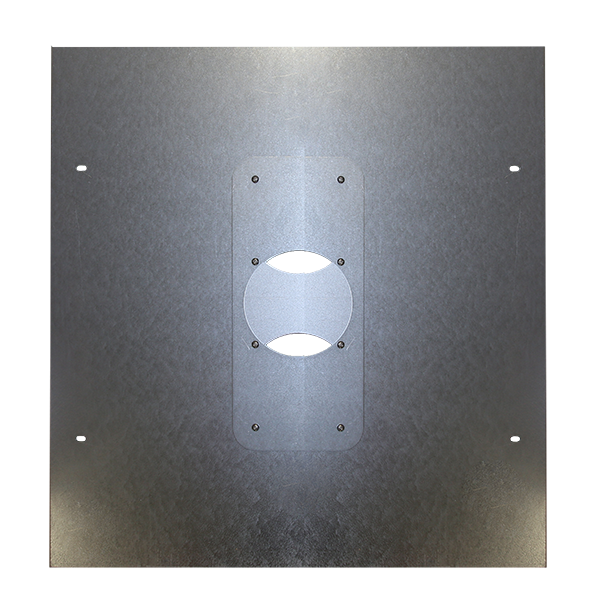

DEK-35-UNI Cover plate 1-2 holes, 590x550mm
24.10.20 DEK-35-UNI Cover plate 1-2 holes, 590x550mm

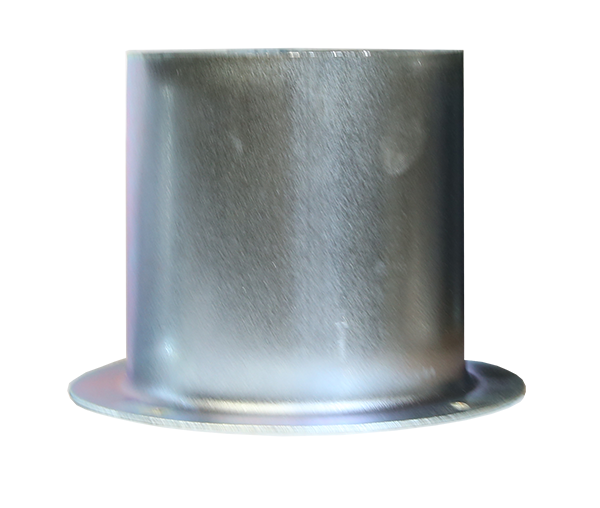

VS-90 Filler piece 100 mm right angle 90degrees
24.01.00 VS-90 Filler piece 100 mm right angle 90degrees

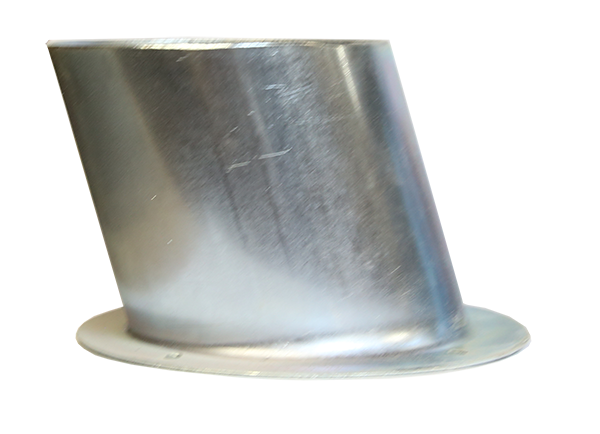

VS-75 Filler piece 100 mm angled 75degrees
24.02.00 VS-75 Filler piece 100 mm angled 75degrees

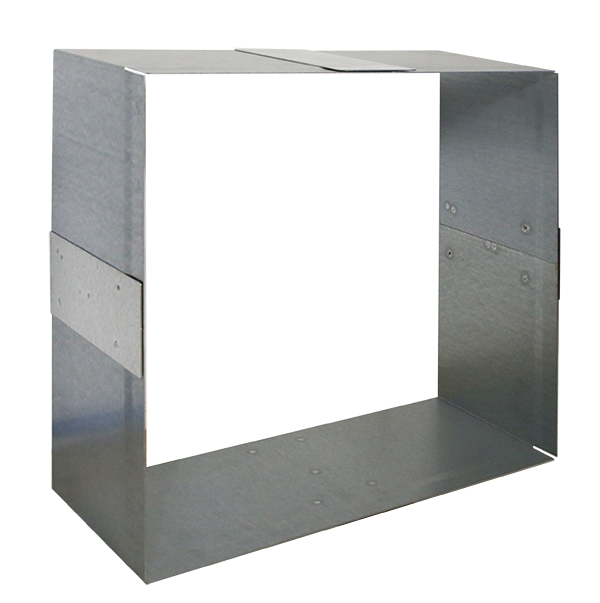

OZR-BB Mounting collar for receiving hopper H=200mm
24.10.02 OZR-BB Mounting collar for receiving hopper H=200mm
